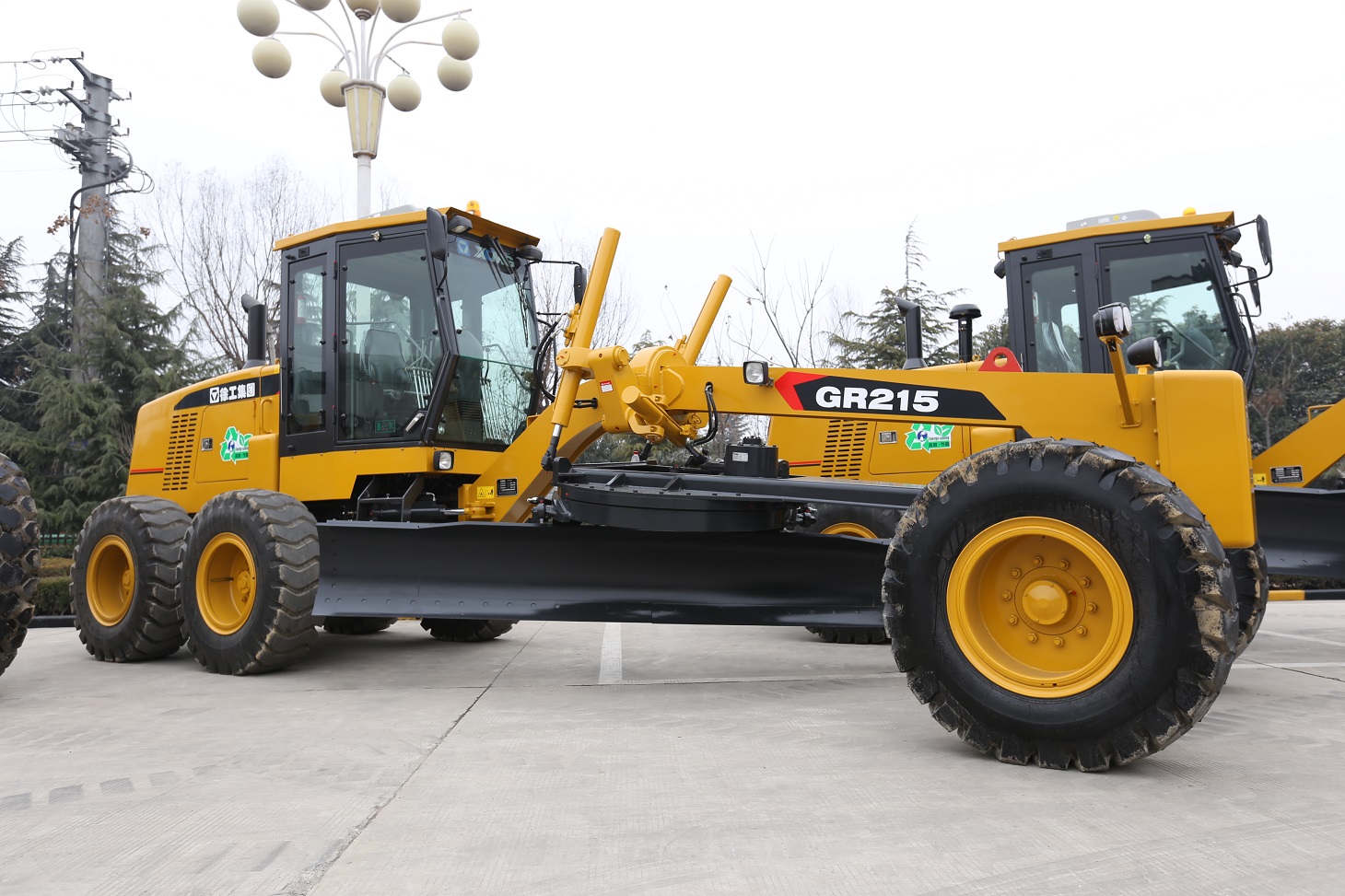

Motor Grader GR215

Cummins engine 160kW,
Operating weight 17 tons ,
Moldboard 4270×610mm,
Cabin with Air conditioner.
Adopt imported hydraulic parts .
Great working performance .

Various implements available

Model

GR215

Engine   model

Cummins 6CT8.3-C215

Rated power/speed

160Kw(215hp)/2200rpm

Dimension(L*W*H)

9422*2601*3430mm

Operating   weight

17000kg

Module   weight on front wheels

5100kg

Module   weight on rear wheels

11900kg

Tire   size

17.5-25RP12

Min   ground clearance

430mm

Distance   between front and rear axles

6266mm

Distance   between middle and rear wheels

1639mm

Min   turning radius using articulation

7.8m

Maximum   lift above ground

460mm

Maximum   depth of cutting

500mm

Maximum   blade position angle

90

Blade   cutting angle

28-70

Circle   reversing rotation

360

Blade   (width*height)

4270*610mm

Travelling   speed ,forward

5,8,11,19,23,38km/h

Travelling   speed ,reverse

5,11,23km/h

Max   tractive force

87kN

Max   gradeability

20

Tire   inflation pressure

2.6bar

Working   hydraulic pressure

18MPA

Transmission   pressure

1.6-1.8Mpa(16-18kg/cm2)

Cooling   system

50L

Fuel   tank

280L

Engine(crankcase)oil

24L

Transmission

26L

Counterbalancing   case

46L

Hydraulic   system

110L

Turbine   box

2.5L
